Hot Racing STE260 Steel Pinion and Spur Gear Set (18t/60t 32p)(Red) - Traxxas

Hot Racing STE260 Steel Pinion and Spur Gear Set (18t/60t 32p)(Red) - Traxxas.

This is the Hot Racing 0.8MOD 32P Brushless Steel Gear Kit, featuring light weight hardened steel 18T/60T 32 pitch pinion and spur gear set for the Traxxas Bandit, Rustler, 2WD Slash, and 2WD Stampede.

Features:

CNC machined and lightened hardened steel construction

Replaces stock nylon spur gear

Rugged 0.8 Module/32pitch teeth for total reliability on brushless power

Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts

Black oxide coated gear for durability and corrosion resistance

Red anodized countersunk aluminum washers

High strength hardware

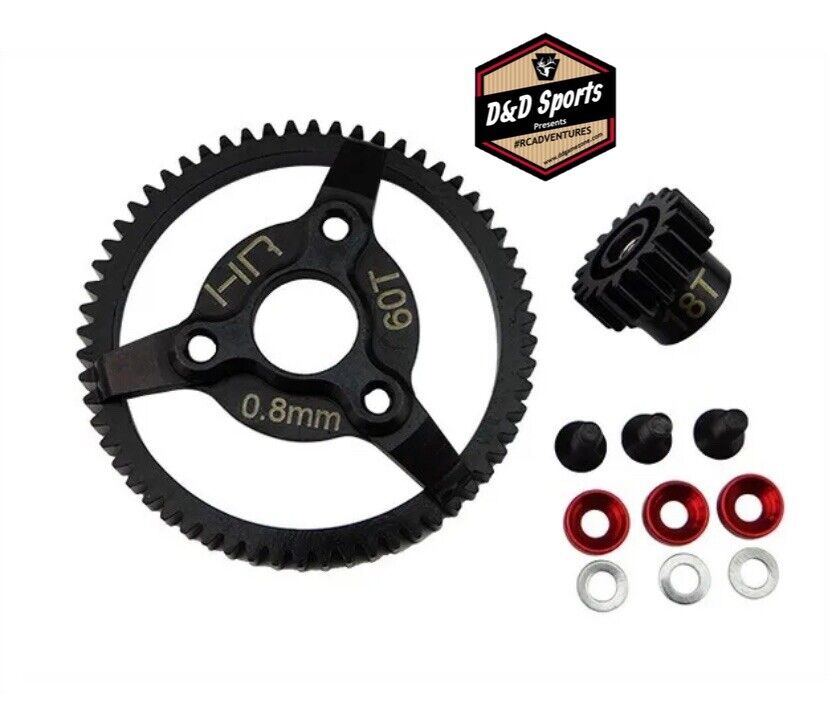

Includes:

(1) 18 tooth 32 pitch (0.8 Mod) pinion gear

(1) 60 tooth 32 pitch (0.8 Mod) spur gear

(3) mounting screws

(3) red anodized countersunk washers

(1) pinion adapter sleeve

(3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)

Specifications:

Number of Teeth: 18T/60T

Gear Pitch: 32 pitch (0.8 module)

Mounting Holes: 3

Tooth Face width: ~5mm

NOTES:

Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting

Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
