Holmes Hobbies TorqueMaster Expert 550 21t Motor New
Holmes Hobbies TorqueMaster Expert 550 21t Motor New
Holmes Hobbies TorqueMaster Expert 550 21t Motor New.

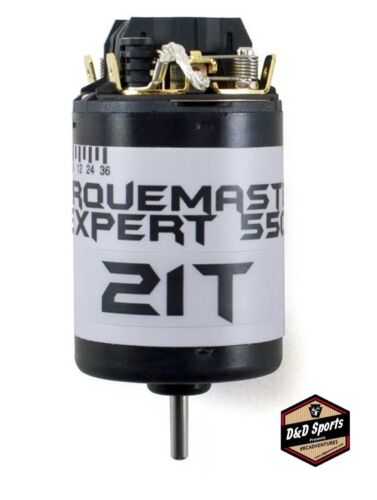

The Holmes Hobbies TorqueMaster Expert 550 Brushed Motor features the same quality construction as the hand wound Pro series motors, but with a machine wound armature for an affordable alternative.
Features:
550 size provides extra torque and power
Machine wound for affordability
5mm web 3 slot armature- Maximizes torque, efficiency, and offers smooth startup
Gold-plated copper brush hoods to resist corrosion and provide lowest resistance
Aluminum heatsinks shed heat
Filter PCB reduces EMF noise
Brush damper reduces noise and arcing
Can – 1.4mm thick uninterrupted back iron
High-power FB12 ceramic wet magnets maximize torque and efficiency
Dual Japanese Ball bearings
Adjustable timing
Holmes XX springs for consistent drag brake
Holmes Soft Copper brushes for high torque and longest motor life
Broken in for immediate installation and use
Specifications:
Armature: 21 turn three slot
RPM: 27,250 RPM @12v @ 12 degrees timing
Weight: 206 grams
Diameter: 36mm OD x 60mm length (not including shaft)
Shaft: 1/8" diameter D shaft
Mounting Pattern: 1" (25.4mm) M3 screws
Input Voltage: 6-9 cell nimh, 2-3s Lithium
Rotor: 23mm OD x 29mm length
