Holmes Hobbies SHV500 LP Direct Power 16V Rock Crawler Servo Black HHB230100016

Holmes Hobbies SHV500 LP Direct Power 16V Rock Crawler Servo Black HHB230100016

Regular price $120.00
Regular price Sale price $120.00
Sale Sold out

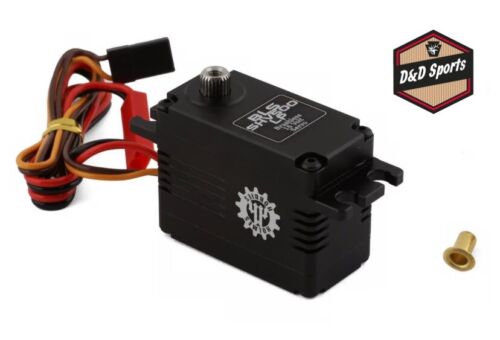

Holmes Hobbies SHV500 LP Direct Power 16V Rock Crawler Servo Black HHB230100016.



Holmes Hobbies SHV500 HV Waterproof Crawler Brushless Servo


Holmes Hobbies SHV500 High Voltage Direct Power Waterproof Crawler Brushless Servo. Capable of running on high voltage input of up to 16.8V! This enormously powerful servo can put out (680oz/in) of torque and (0.108sec/60°) of speed at 14.0V to provide you with all power, torque and speed needed for crawlers and heavy applications! Equipped with all CNC machined high quality steel gear, a super light and durable aluminum case that maximizes heat dissipation and a waterproof design, this SHV500 is built to be extremely tough and durable to stand up to the roughest conditions! It is powered directly by a 2S to 4S LiPo battery with a JST plug to your ESC's battery plug to eliminate the need for an external BEC for cleaner wiring! gain space in a tight rig, and enjoy the performance from this beastly brushless servo!



NOTE: If using an ESC with a power switch, the battery must be disconnected from the ESC and servo when not in use to prevent damage to the servo and/or battery. Do not connect the servo directly to the battery balance port. Doing so can damage the servo and will void the warranty. Moly (marine) grease is recommended when lubricating the gears. Dielectric grease is recommended inside the back of the servo if looking to increase water resistance for long term submersion.


Features:


Perfect for 1/0 crawler and other applications in need of high torque and high voltage servo

Water-resistant alloy case with O-ring seals

Waterproof internals

All CNC-machined steel gears with proven pin strength

Upgraded Brushless motor with 200C rated magnets

30cm radio signal lead

2-4S (6-16.8V) compatible

JST connector for direct power

Eliminates the need for external BEC!

Specifications:


Motor: Brushless

Operating Voltage: (2-4S) 6.0-16.8V

Speed:

11.1V: 0.136sec/60°

14.0V: 0.108sec/60°

Torque:

11.1V: (528oz/in)

14.0V: (680oz/in)

Spline: 25T (Protek/Futaba)

Gear: CNC-Machined Steel

Dimensions (LxWxH): 40x20x31.5mm

Weight: 69g

Includes:


(1) SHV500 HV Low Profile Direct Power Crawler Brushless Servo
