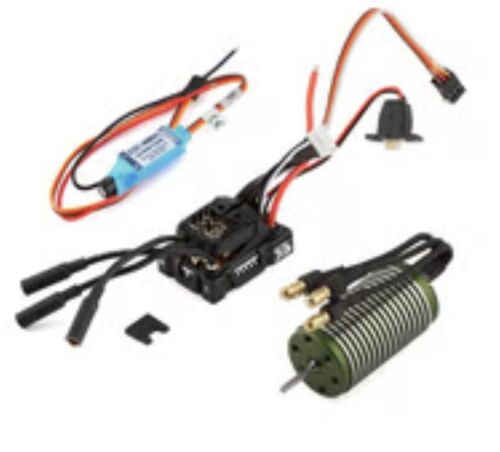

Castle Creations 010-0169-03 Mamba Micro X2 1/18 Scale 8200Kv BL Combo

Castle Creations 010-0169-03 Mamba Micro X2 1/18 Scale 8200Kv BL Combo.

Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo (8200Kv) w/CSE010-0004-00 10A BEC

The Castle Creations Mamba Micro X2 Waterproof 1/18th Scale Brushless Combo with 0808-8200Kv motor is the perfect upgrade for 1:18 scale RC vehicles, up to 2S LiPo and weighing in at up to 1.5lbs.

The Mamba Micro X2 ESC increases the maximum input voltage to 4s, with added DATA LOGGING and CRYO-DRIVE TECHNOLOGY that allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and offers SENSORED MOTOR SUPPORT. This is the perfect upgrade for 1:18th scale 2WD or 4WD vehicles up to 2.25 lbs. The Mamba Micro X also works well in some 1:10th scale crawlers for low speed operation (no rock racing/hill climbing).

NOTE: The Mamba Micro X2 will no longer include an internal BEC unit. Included with the Micro X2 ESC will be an upgraded external 10-Amp adjustable BEC (CSE010-0004-00). This external BEC upgrade will be supplied at no additional charge.

ESC Features:

Input Voltage range 2S-4S

Upgraded external 10-Amp adjustable BEC included (CSE010-0004-00)

Waterproof design

Sensored Motor capable (with optional sensor harness)

Convenient transmitter programming for six common adjustable settings

Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)

Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)

Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as Max Power and Max Brake

Audible Alerts that will notify you of possible issues with calibrations and error conditions

Designed and manufactured in Olathe, Kansas and is backed by manufacturer 1-year warranty

Specifications:

ESC:

Input Voltage Range: 2S-4S LiPo (16.8V Max)

BEC: External 10-Amp adjustable BEC (CSE010-0004-00)

Operating Environment: Waterproof* design allows for use in nearly any environment

Brake: Proportional

Reversible: Yes, but may be disabled

On/Off Switch: Yes, waterproof

Cooling Fan: Not included

Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")

Weight (with wires): 1.66 oz / 47 grams

Connectors: 3.5 mm bullets

Application Guidelines: 1:18 scale RC hobby vehicles weighing up to 2.25lbs.

Recommended Motors:

Castle 0808 4100Kv: Max Cells: 3S Lipo or 8 NiMH

Castle 0808 5300Kv: Max Cells: 3S Lipo or 8 NiMH

Castle 0808 8200Kv: Max Cells: 2S Lipo or 8 NiMH

Max. Recommended Vehicle Weight: 2.25 lbs, with batteries, ready-to-run

Programmability: Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS and a B-LINK Bluetooth Adapter (sold separately)

Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX Transmitters.

Motor:

Input Voltage Range: 2S LiPo, 4-7 cell NiMH

Kv: 8200

Max. RPM: N/A

Size: Length: 1.5" (38mm)

Diameter: 0.79" (20mm)

Weight (w/wires): 1.8 oz. (50g)

Shaft Size: Length: N/A

Diameter: 0.08" (2mm)

Mounting Hole Specifications: 2.5mm holes @ 1/2”, 14MM, 5/8”

Cooling Fan: No

Connectors: 3.5mm male bullets

Application Guidelines: Up to 2S LiPo and weighing in at up to 1.5lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)

Max. Recommended Vehicle Weight: 1.5lbs
